Turnkey Contracting of Air Piping Distribution System

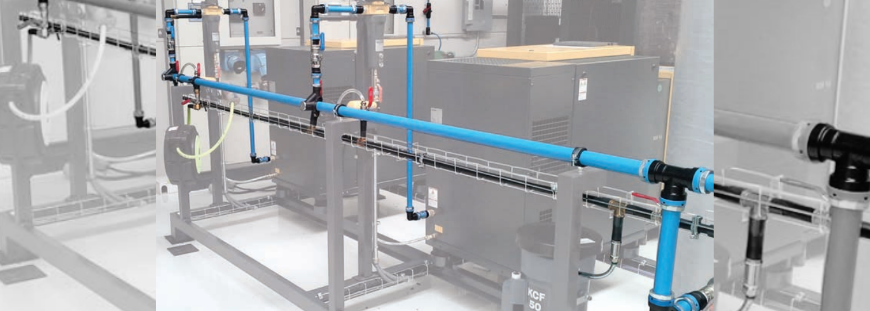

Compressed Air Piping Distribution System

Global Cynax offers extensive support and guidance for the complete range of compressed air & vacuum pipeline works within your plant. Global Cynax utilizes aluminium pipes, which have become the widely accepted industry standard for comprehensive compressed air piping systems. This choice is attributed to their anti-corrosive properties, lightweight nature, and ease of handling. When compared to traditional galvanised, stainless steel or plastic pipes for this type of work, our aluminium piping system offers the following several advantages:

Apart from that the main reason to use aluminium pipe is to reduce the pressure drop & it saves energy. According to research conducted by BUAA China, if traditional pipes are used, only 60% compressed air is actually used. Remaining 40% losses are as follows: 25% for air leakage, 10% for pressure drop and 5% for unknown reasons.

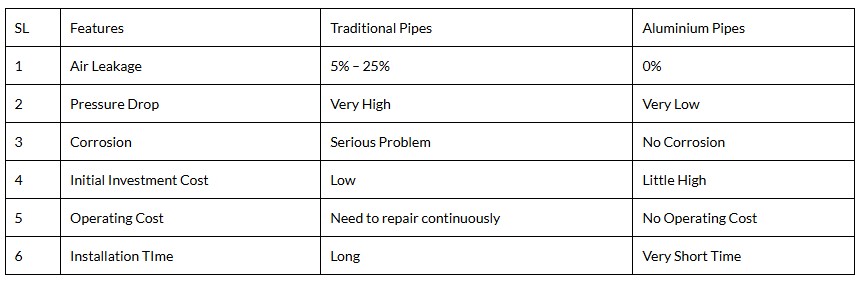

Comprehensive Comparison: Traditional Pipes VS Aluminium Pipes

Global Cynax Offers Aluminium Piping Distribution System

The aluminium pipes we use for compressed air and vacuum distribution networking are manufactured in China and hold the following licenses: CE, SGS, ISO9001, ISO14001, TS, GC2. These licenses guarantee that you are receiving the highest quality pipes & fittings, which are not only energy-efficient but also effectively reduce pressure drop.

We have skilled manpower and an in-house setup to handle the design and planning process effectively. Our working process and steps involve design and planning, material selection, installation, testing, and project handover.  During the design stage, Global Cynax’s engineering team initiates the process by gathering data from the site by evaluating the specific compressed air requirements of each process application within the factory. This meticulous assessment enables our team to strategically plan and create a preliminary sketch layout for an efficient piping distribution network. Subsequently, our proficient in-house design team meticulously utilizes the sketch data to make a comprehensive distribution layout design that incorporates precisely selected piping sizes and fittings. Before commencing the project, it is imperative that this final drawing undergoes a crucial approval process from the client, ensuring alignment with their specifications and requirements. The installation process includes cutting and assembling the pipes, along with fittings and valves, to connect the compressor room to process applications. Testing is conducted to ensure system integrity, and finally, comprehensive documentation is prepared for project handover. Global Cynax follows these steps meticulously, ensuring a smooth and successful implementation of the aluminium piping system for compressed air distribution in the factory.

As Global Cynax specializes in air compressor supply, we recognize the equal importance of proper air distribution networking. We understand that a well-designed distribution network contributes to improved efficiency and benefits our clients. Feel free to contact our team, and we will assist you in creating the right air distribution networking solution to optimize your operations and maximize efficiency.
